SYSTEM

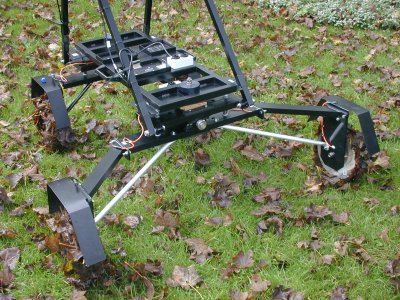

Rugged aluminium and stainless steel platform
Integral data logger and multiplexing units
Integral encoder wheel for position based logging
Sample Trigger option for time based logging
Assembles ready for use in approximately 15 minutes

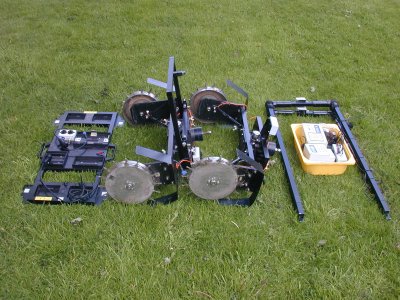

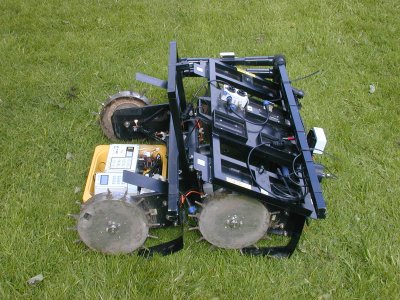

Disassembles into smaller sections for easy vehicle transportation
Toolkit supplied
Weight (MSP40, DL256, MPX40, cables, FM bracket) : 29.9 Kg
Weight (MSP40, DL256, MPX40, cables, FM bracket, RM15) : 31.7 Kg
Weight (MSP40, Expansion Interface Box, cables, FM bracket, RM85) : 30.2 Kg
Please note RM85, RM15, FM256, FM18, FM36 are not included with the MSP40
DL256 DATA LOGGER UNIT (required for RM15 based system)
256000 readings, 15 minute full download
Square or rectangular grid sizes : 10 to 100m
Sample and Traverse Intervals (independent) : 0.125, 0.25, 0.5, 1m
LCD backlight and contrast adjustment
External compartment for main battery pack
NiMH battery pack, 4hr fast charge (LED status)
International voltage and pin sets for charger
Battery life > 20 hours typical
Additional battery holder for alkaline batteries
RS232 data dump lead
Please see the RM85 for details of its logging and multiplexing capabilities.
MPX40 MULTIPLEXER UNIT (required for RM15 based system)
Solid state relay voltage rating: 350V
Solid state relay current rating: 120 mA
Solid state relay on-resistance: 20 ohms
Powered by data logger unit
All specifications subject to change without prior notice
|
|
